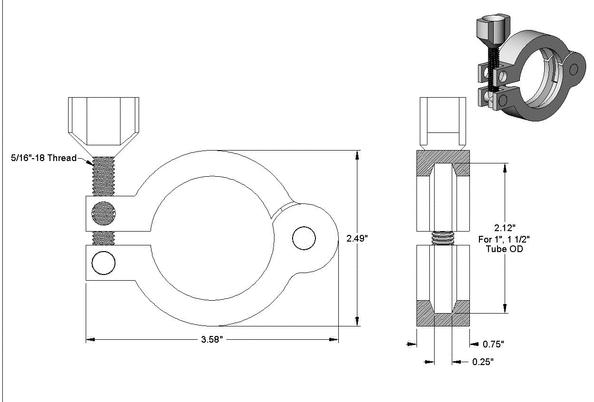

Quick-Clamp Tube Fittings

13MHHM-1 1/2"

Part Number: 4322K152

Shape

Clamp

Clamp Type

Hand Tightened Wing Nut

Fitting Material

Type 304 Stainless Steel

Type

High-Polish Sanitary

For Tube OD

1", 1-1/2"

For Flange OD

1.984"

Temperature Range Note

Determined by the gasket material used in the connection. Buna-N: -30° to +200° F. PTFE: -100° to +500° F. Fluoroelastomer: -20° to +400° F.

Maximum Pressure @ 72° F

500 psi

For Tubing Type

High-Polish Sanitary Stainless Steel Tubing

For Use With

Air, Dairy, Water

Vacuum Rating

Not Rated

Sterilize With

Steam (Autoclaving)

Specifications Met

Not Rated

Note

For a complete connection, you'll need a clamp, gasket, and two fittings or adapters.

Compatible Gasket

Buna-N: 4509K13 (1"), 4509K14 (1-1/2"). PTFE: 43315K23 (1"), 43315K24 (1-1/2"). Fluoroelastomer: 5044K13 (1"), 5044K14 (1-1/2").
