FITTINGS

PLAIN WELD ENDS

1/2”
CLAMP

3/4”
CLAMP

1/2”
ILC

3/4”
ILC

1/2” BSP
FEMALE

1/2” BSP
MALE

3/4” BSP
MALE

1/2”
PLAIN

3/4”
PLAIN

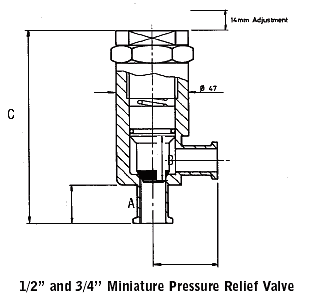

A(mm)

42.5

42.5

37

40

51

41

55

34

34

B(mm)

41

26

35

23.5

35

25

40

20

5

C(mm)

145

130

139

127.5

139

130

144

124

109
